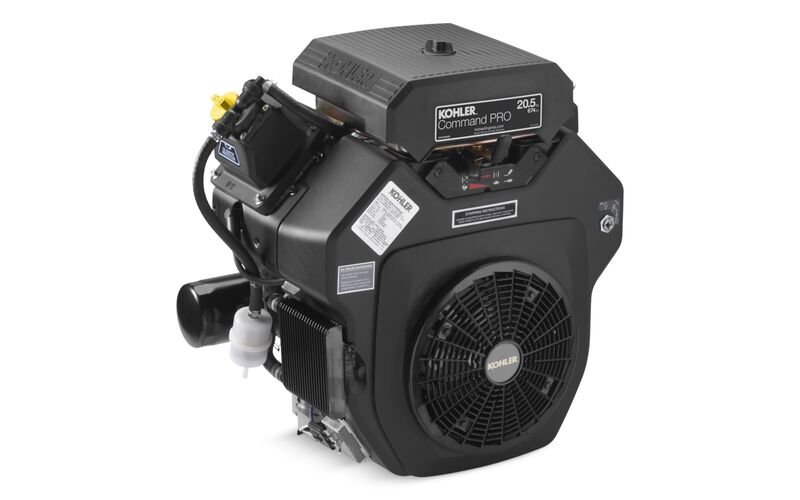

Kohler Command Pro CH640 V-Twin 20.5HP
Brand: KOHLER
Product Code: CH640
Availability: Special Order
This is a special order item - please allow 7-10 days for dispatch or click and collectProduct Options
Free shipping, no muffler included
Replaces Old Kohler Spec# 64501, CH20S, CH640-3002, CH640-3202
This is a standard Kohler engine - 3750 RPM, 15 AMP Charge System, Low Profile Air Filter
Good replacement for 64523
Standard Features:
- Overhead Valve Design
- Hydraulic Valve Lifters
- Electronic Ignition
- Dual Element Air Cleaner 2 1/2 Tall
- Closed Breather System
- Stellite Exhaust Valves
- Cast Iron Cylinder Liners
- Full Pressure Lubrication
- In-Line Fuel Filter
- Easy Access Valve Cover Oil Fill
- Oil Level Dipstick
- Oil Filter
- Dual Oil Drain
- Oil Sentry (Switch Installed and Wired but Unconnected)
- Variable Speed Governor
- Fuel Shutdown Solenoid
- Smart-Choke Carburetor
- Mechanical Fuel Pump
- 12 Volt Solenoid Shift Starter
- 15 Amp Alternator, Regulated
- Engine Controls-Key Switch, Throttle and Choke Controls
- Crankshaft Size 1 7/16 in. (36 mm) Diameter x 4.41 in. PTO Length 0.375 in. (9.5 mm) Keyway, Drilled and Tapped 1.5 in. (38 mm) Deep, 5/8-18 UNF
- PTO Face-5.625 inch(143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 inch(17 mm) Deep, 7.75 inch (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 inch (21 mm) Deep
- 7 inch (178 mm) Diameter Pilot
- Exhaust System Kit are NOT included
- Specifications
Specifications
Kohler
CH640-3227 / CH640-3230 / CH640-3129
3 Year Limited
48.5kg
20.5 Gross HP
2400
Horizontal
Electric
Electronic
Two-Barrel
Two
Cast Iron Liners
2.0 qt
Unleaded
3.1" x 2.6"
8.5 : 1
15 Amp
